Beast Mode: Trevor’s 2007 Mazdaspeed 3

Additional Photography By: Drake Nolte

10

Recently a number of builds have emerged from the rapidly growing Mazda 3 aggressive fitment community that are pushing the chassis ride height and wheel fitment boundaries to new levels.

As these cars get lower, and lower, and wheels wider, and wider, several individuals have begun to explore the possibilities that exist beyond the limitations of the stock 3 body.

Already running a fairly aggressive set up the , Trevor used an ailing motor as an excuse to give his Mazdaspeed 3 a top to bottom rebuild for the 2014 season.

widebody_mazdaspeed3_3_dt

widebody_mazdaspeed3_2_dn

widebody_mazdaspeed3_1_dt

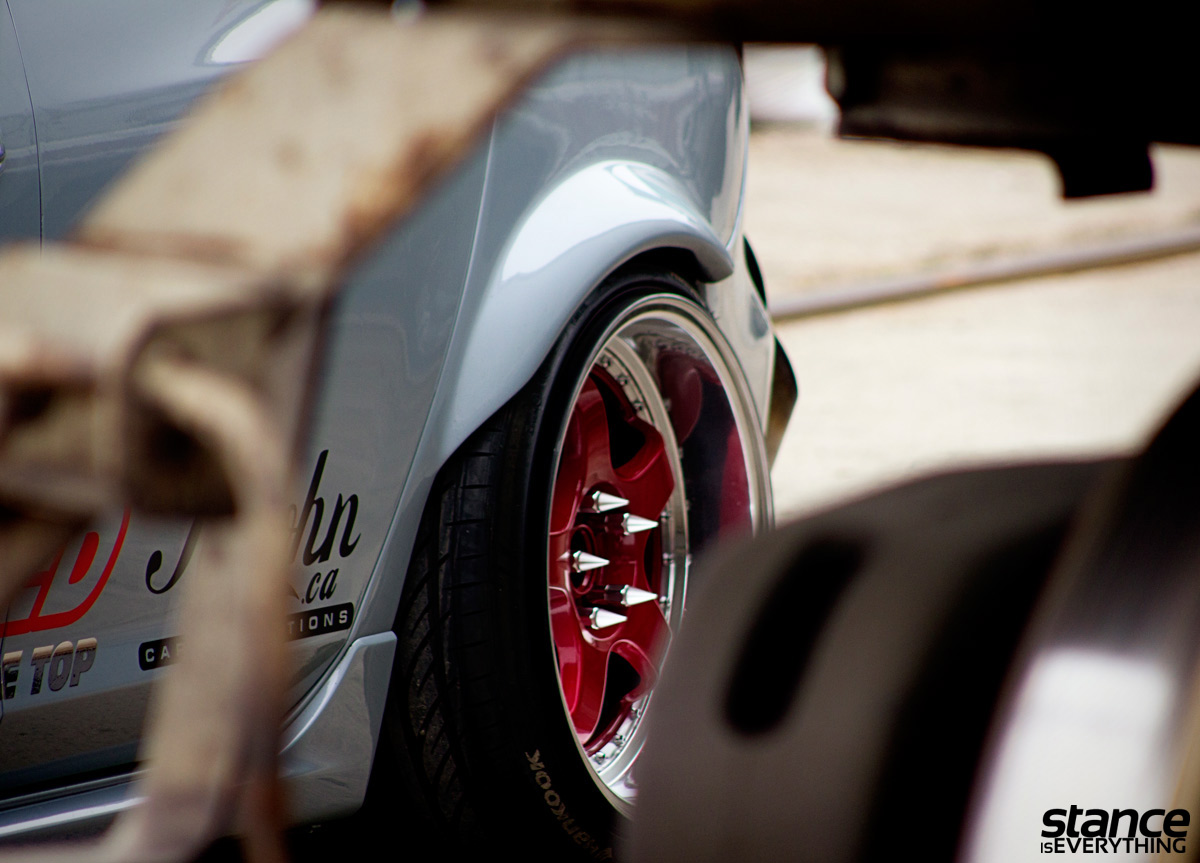

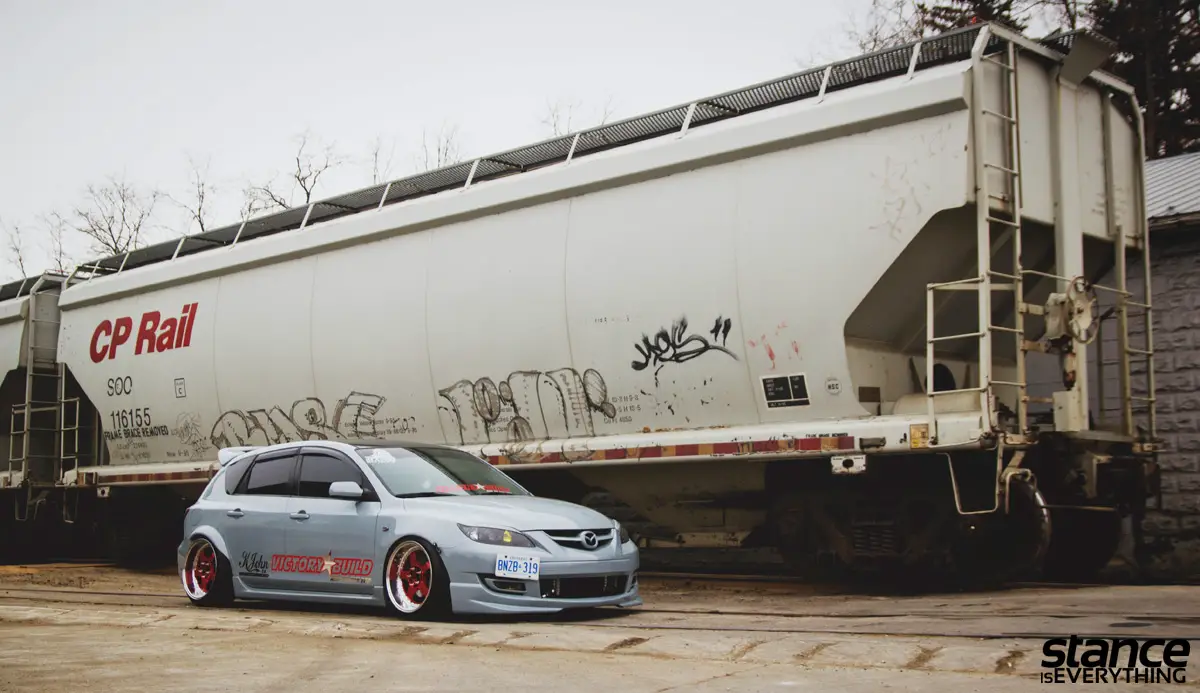

After some careful planning Kieron ‘KJohn’ Ramjohn of KJohn Car Innovations got to work removing any factory metal that would prevent the 18×10 Koning SSM wheels from properly fitting underneath Trevor’s Mazda.

While bolt on flares are the current ‘go to’ option for going wide, Trevor and KJohn bucked the trend and went the more challenging route of molding the new flares to the body.

widebody_mazdaspeed3_4_dt

widebody_mazdaspeed3_5_dn

widebody_mazdaspeed3_6_dn

widebody_mazdaspeed3_7_dt

Though historically this option runs the risk of cracking filler and paint at the slightest breeze, these flares have been properly, and permanently, affixed to the car. Even when yanked on forcefully to prove a point these flares don’t so much as budge.

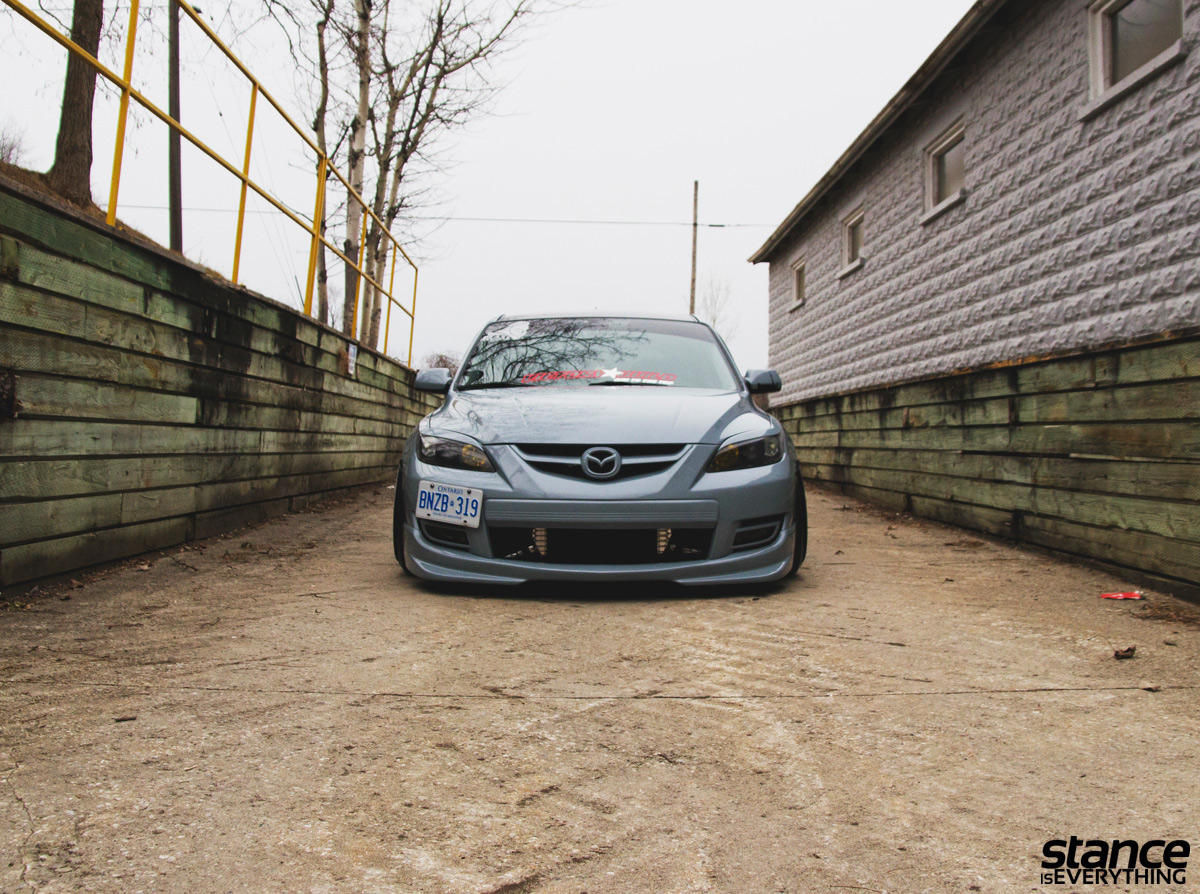

The end result of the extensive body work –combined with a healthy drop provided by Standard Suspension coilovers– is a rear end silhouette that would make the likes of Coco jealous.

widebody_mazdaspeed3_8_dt

widebody_mazdaspeed3_9_dt

widebody_mazdaspeed3_10_dn

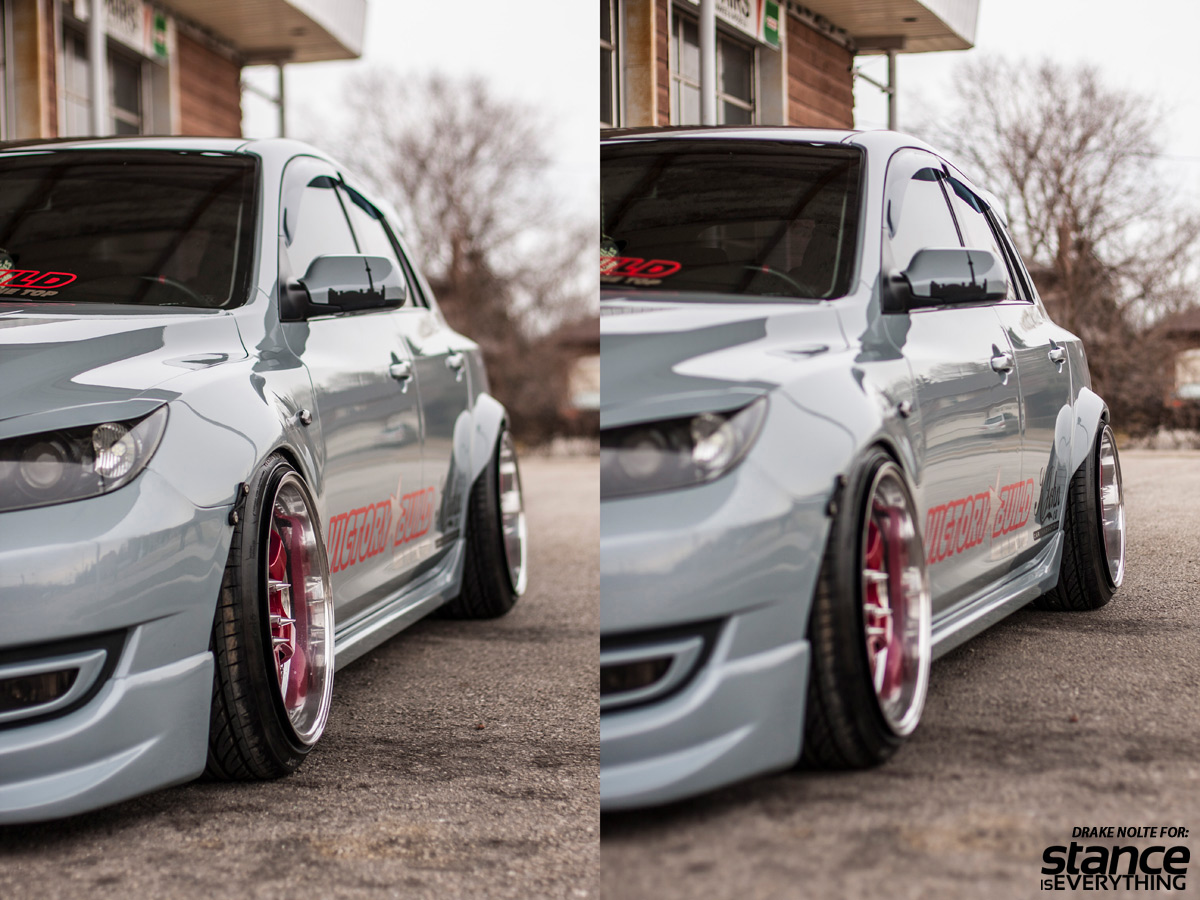

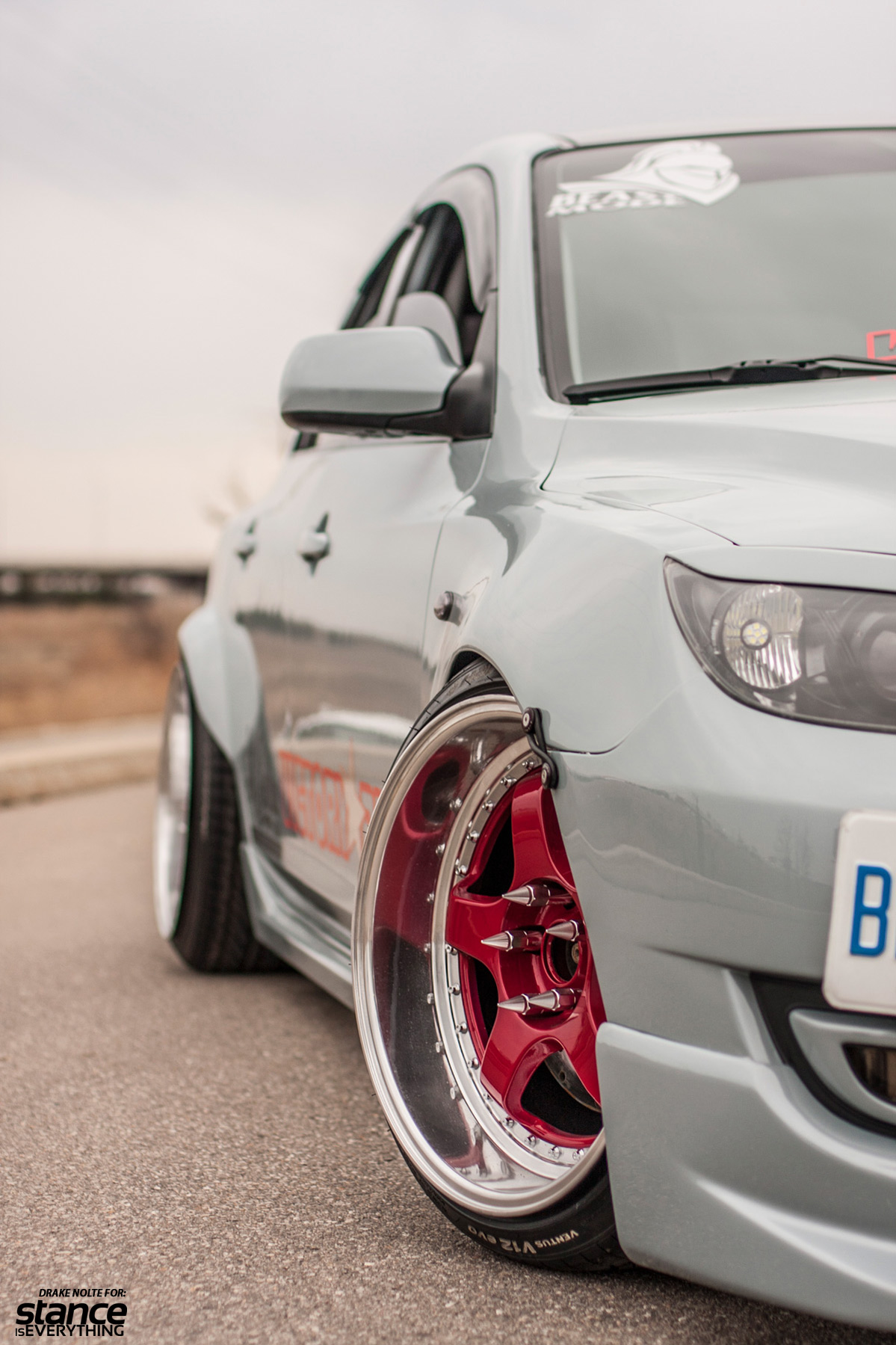

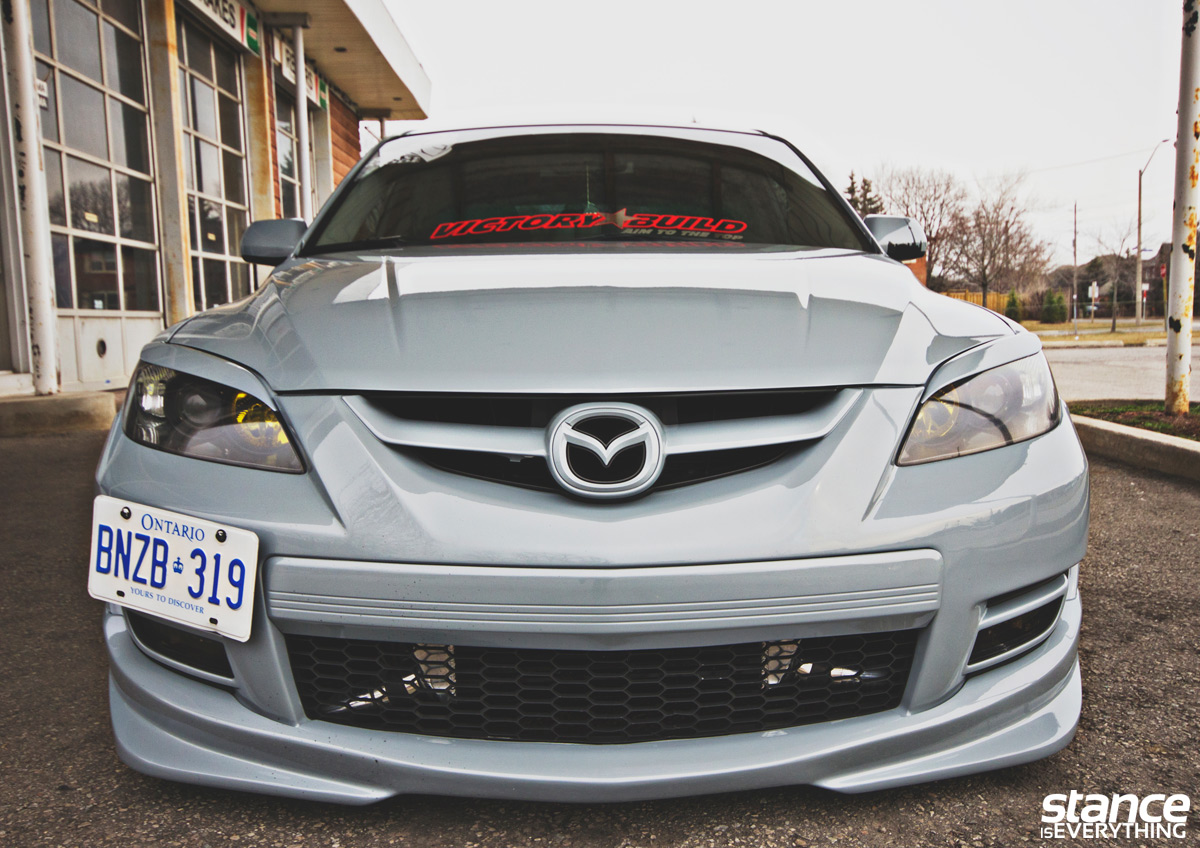

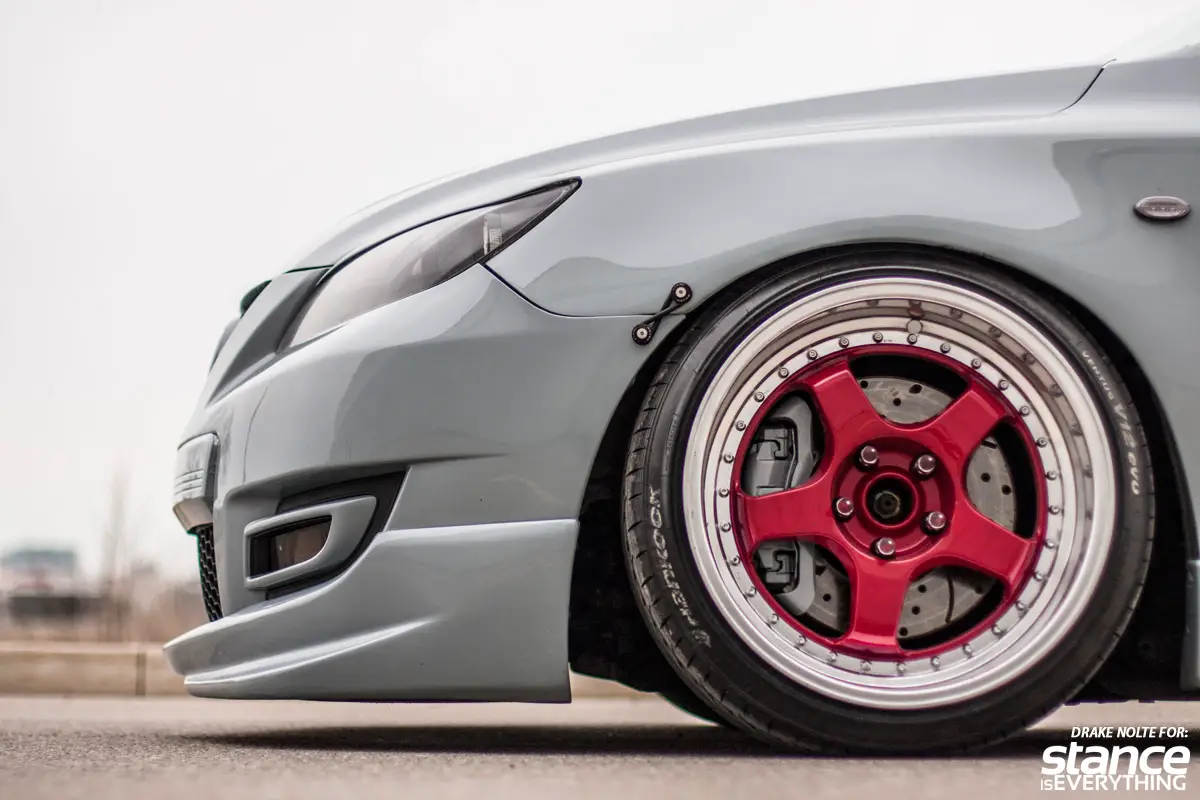

With the rear of the car set significantly wider than stock something had to be done up front, so prior to spraying that unique custom grey paint on the exterior KJohn widened the front fenders in a subtle blister style.

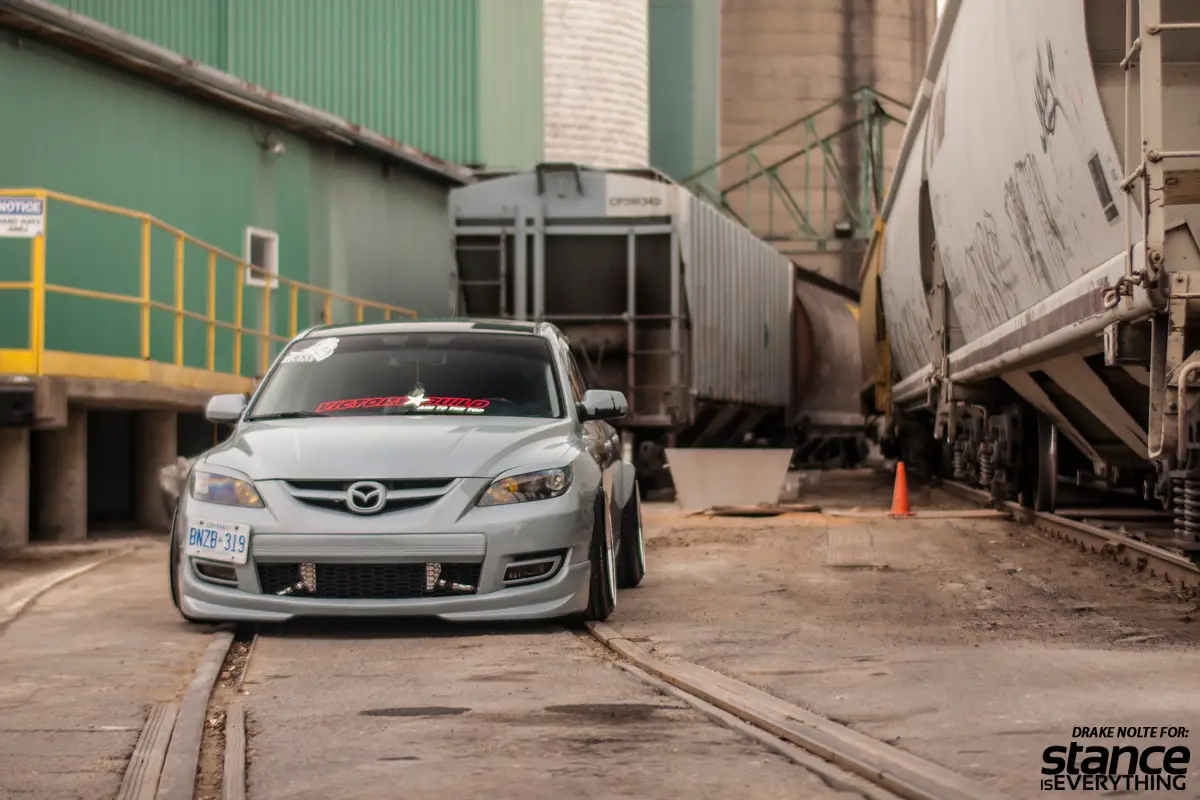

This detail, that many may overlook while studying the rear quarters, gives the car a nasty snarl when combined with the Garage Vary front lip and matching eyelids.

widebody_mazdaspeed3_29_dt

widebody_mazdaspeed3_11_dn

widebody_mazdaspeed3_12_dn

widebody_mazdaspeed3_14_dt

widebody_mazdaspeed3_13_dt

While the car was under going it’s exterior transformation at the hands of KJohn, Trevor was busy rebuilding the bum motor that kick started this entire rebuild.

The turbo 2.3 DISI MZR I4 mill now boasts a lengthy list of modifications including; a ported and polished intake manifold, SURE Motorsports TIG™ thermal intake and throttle body spacers, SURE Injector seals, SURE balance shaft delete, SURE 3″ Inlet and Intake, ARP studs, and a CXRacing front mount inter cooler.

Suited, booted, and tuned by Advance Power House, Trevor’s car is now running better than it ever has before.

widebody_mazdaspeed3_14_dn

widebody_mazdaspeed3_15_dn

widebody_mazdaspeed3_16_dn

On the inside Trevor continued the red/black/grey color scheme blueprinted by both the new exterior color and stock Mazdaspeed 3 seats, by having his center console sprayed the same candy apple found on his wheels.

Further tying the seats, console, and wheels together are custom wrapped factory door cards.

widebody_mazda_speed_3_28_dt

widebody_mazdaspeed3_19_dn

widebody_mazdaspeed3_20_dn

widebody_mazdaspeed3_21_dt

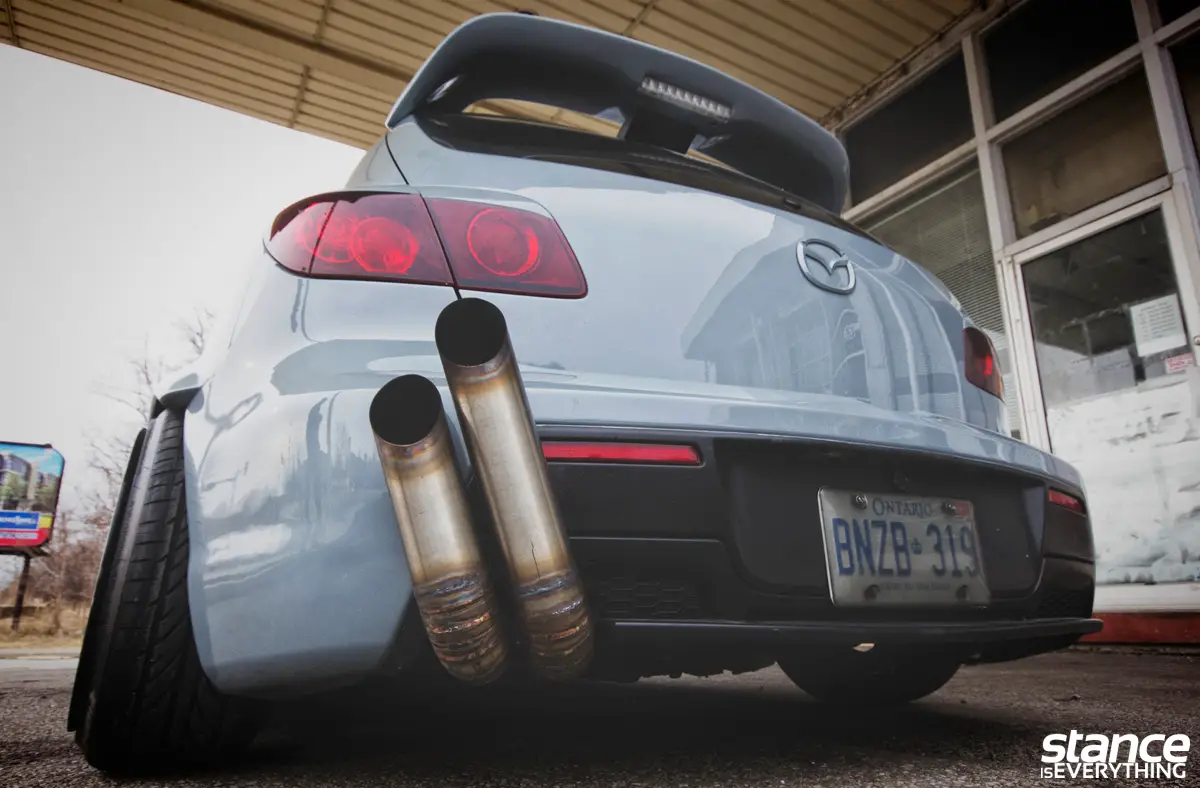

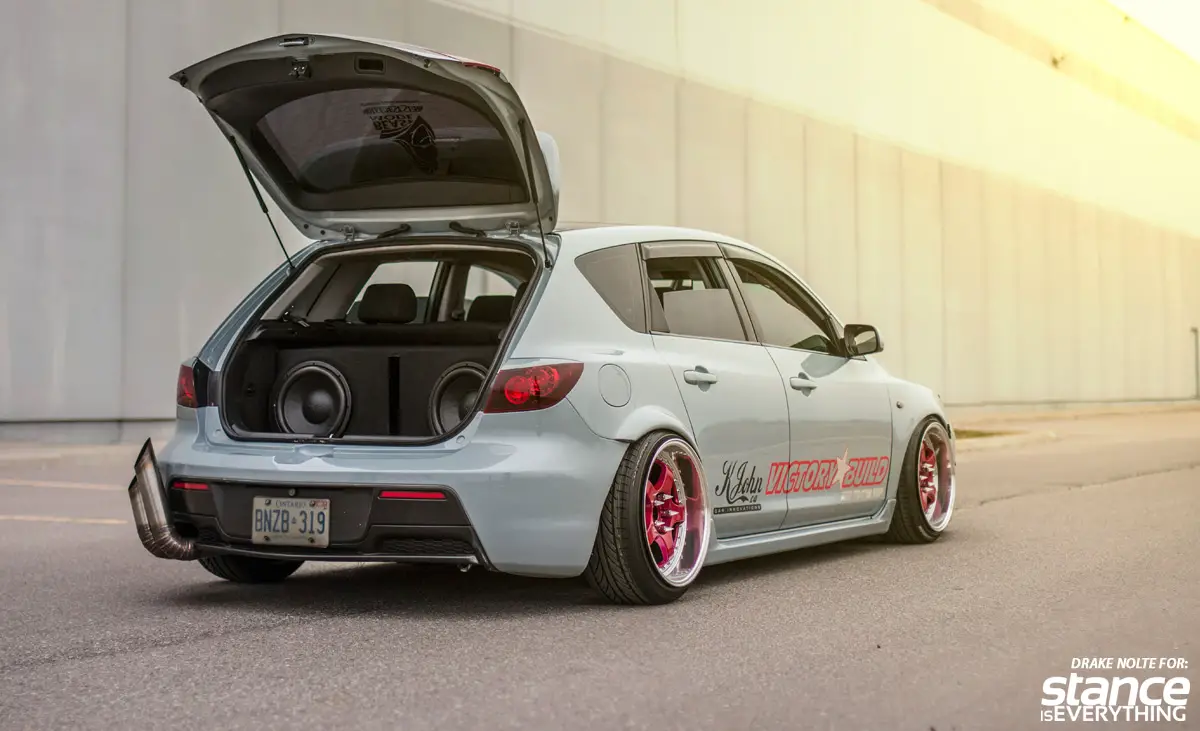

Should Trevor not want to listen to his Turbosmart blow off valve, or Victory Build custom Exhaust, a quick turn of the volume knob on his Sony deck sends sounds pumping through the complete Skar Audio in car entertainment system consisting of Skar Audio 6.5″ components, VVXV2 Subwoofers, and duo of SK800.1 and 80.4 amplifiers.

widebody_mazdaspeed3_17_dn

widebody_mazdaspeed3_18_dn

There’s a saying that goes “when life gives you lemons paint that shit gold” and while Trevor didn’t paint his car gold after his motor gave up the ghost he certainly did make the best of a bad situation by turning his car into an absolutely unique show stopper.

widebody_mazdaspeed3_22_dn

widebody_mazda_speed_3_26_dn

widebody_mazdaspeed3_24_dt

widebody_mazda_speed_3_27_dn

widebody_mazdaspeed3_23_dn

For more photos of this car be sure to check out the sister feature on MazdaFitment.com.

Exterior

  • Garage Vary Front Lip
  • Garage Vary Eyelids
  • Hydro- Dipped Headlights
  • Custom Paint Color
  • Custom Wide body
  • Rear Wiper Delete
  • Custom Eyelids on Rear Taillights
  • Red Tinted Taillights
  • Custom Victory Built Exhaust and Tip
  • Password JDM Fender Washers
  • Rear Bumper Reflector Delete
  • Custom Wing Extension

Wheels/Suspension/Brakes

  • Konig SSM Rims 18×10 et 15 Painted Candy Apple Red
  • 25mm Spacers in Rear
  • Standard Suspension (STD) R3 Fully Adjustable Coilovers
  • Standard Suspension (STD) Camber plates
  • Vibrant Strut Bar
  • Whiteline Front And Rear Sway Bars
  • Modified SPC Camber Arms
  • Painted Brake Calipers
  • Cross Drilled and Slotted Rotors
  • Hawk HPS Brake Pads

Engine

  • Sure Motorsports Engine Mounts
  • NRG Catch Can
  • CNT Downpipe
  • Ported and Polished Exhaust Manifold
  • Ported and Polished Intake Manifold
  • Sure Tig Thermal Intake and Throttle Body Spacers
  • Autotech Fuel Pump Internals
  • Sure Injector Seals
  • ARP Head Studs
  • Sure Balance Shaft Delete
  • Forged Block
  • Sure Motorsports Full 3 inch Intake and Inlet Pipe
  • EGR Block Off Plate
  • CX Racing FMIC
  • Cobb Acessport
  • APH Tuned
  • Turbosmart BOV
  • Group 34 Deka AGM Style Battery

Interior/I.C.E.

  • Apexi Turbo Timer
  • Center Console Gauge Pod
  • AEM Tru Boost Gauge and Controller
  • AEM Wideband O2 Gauge
  • AEM Oil Pressure Gauge
  • Sony XAV64BT Double Din Deck
  • 6.5″ Skar Audio VX165 Components in Front Doors
  • 6.5″ Skar Audio RPX65 Coaxials in Rear Doors
  • Skar Audio LP-80.4 4 Channel Amp Running Door Speakers
  • (2) Skar Audio VVXV2 Subwoofers
  • Skar Audio SK-800.1 Amp Running Subwoofers
  • Custom Fiberglass / Ported Subwoofer Box
  • 0 Gauge Skar Audio Amp Wiring Kit
  • Custom Wrapped Door Panels and Pillars
  • Custom Painted Center Console to Match Rims
  • NRG Hub and Steering Wheel
  • Hurst Shift Knob

Sponsors

  • Kjohn Car Innovations
  • SOS Autosport
  • Streetunit
  • Victory Build Fabrications
  • Skar Audio
  • Art In Motion Auto Care
  • Standard Suspension

widebody_mazdaspeed3_25_dn
